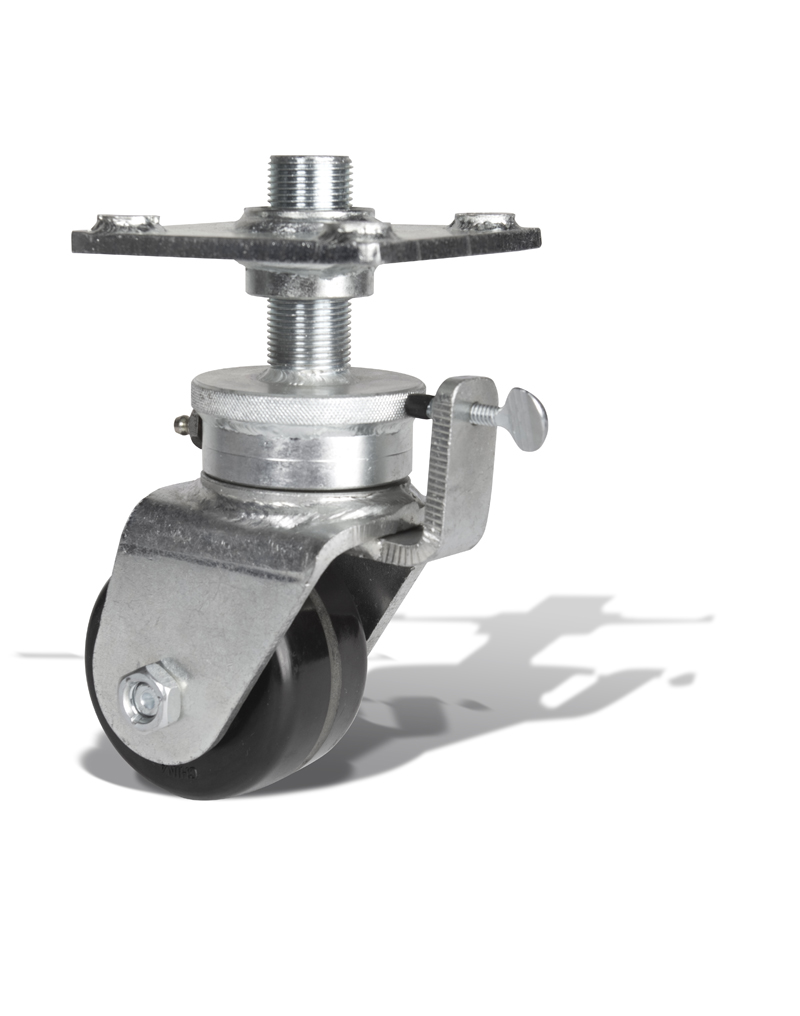

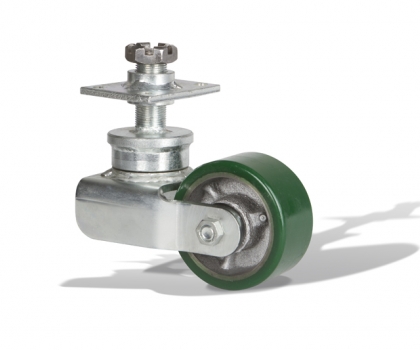

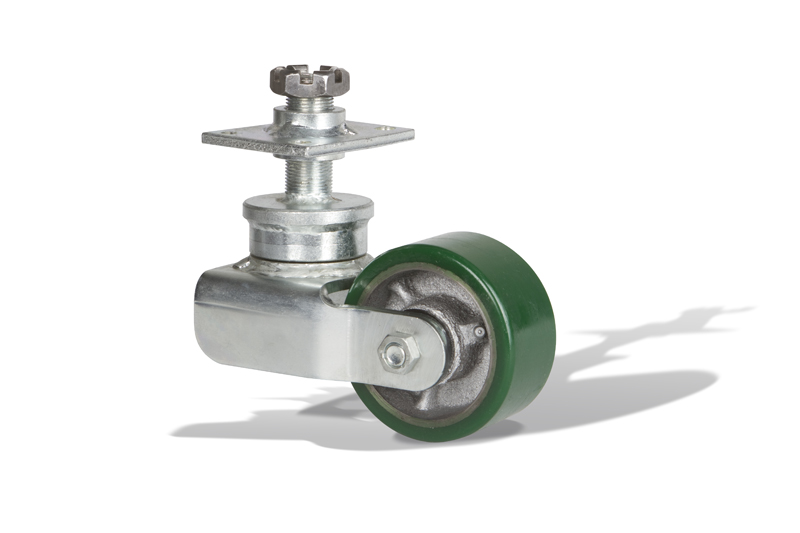

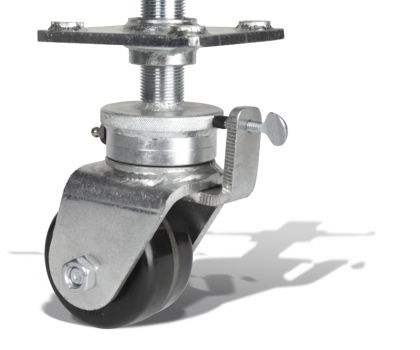

Top Adjust 0 Series

Ross Design™ has developed 0 series top adjustable casters that are larger for greater load capacities. The adjustment design and function remains the same but offered in a design much larger than the 00 series and, capable of loads up to 2,400 lbs.

Adjustments are easily made through the drive slot and a basic hand tool. The larger size 0 series top adjustable caster also offers a standard and lowered style wheel frame. The added wheel frame option allows this caster to offer flexibility in the desired lowered and extended heights. The 0 series adjustable caster has solved mobility problems for numerous applications and continues to exceed expectations.

0 Series Kingpinless Caster Features:

  • Load Capacities Up To 2,400 lbs
  • Standard Mounting Plate 3” x 4” x 1/4”
  • Standard Bolt Hole Spacing 1 3/4” x 3”
  • Standard Bolt Size 5/16”
  • Wheel Frame Thickness 1/4”
  • Ball Bearings 5/16”


  • Swivel Lock
  • Wheel Brake
  • Lowered Wheel Frame
  • Stainless Steel Frame
  • Zinc Finished Frame
  • Extra Adjustment Length
